org.omg.dds.domain.DomainParticipantFactory Class Reference

The sole purpose of this class is to allow the creation and destruction of org.omg.dds.domain.DomainParticipant objects. More...

Inheritance diagram for org.omg.dds.domain.DomainParticipantFactory:

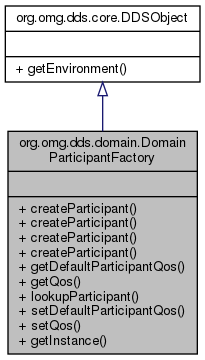

Collaboration diagram for org.omg.dds.domain.DomainParticipantFactory:

Public Member Functions
abstract DomainParticipant	createParticipant ()
	Create a new participant in the domain with ID 0 having default QoS and no listener. More...
abstract DomainParticipant	createParticipant (int domainId)
	This operation creates a new DomainParticipant object. More...
abstract DomainParticipant	createParticipant (int domainId, DomainParticipantQos qos, DomainParticipantListener listener, Collection< Class<? extends Status >> statuses)
	This operation creates a new DomainParticipant object with the specified QoS, listener, and statuses. More...
abstract DomainParticipant	createParticipant (int domainId, DomainParticipantQos qos, DomainParticipantListener listener, Class<? extends Status >... statuses)
	This operation creates a new DomainParticipant object with the specified QoS and the specified listener. More...
abstract DomainParticipantQos	getDefaultParticipantQos ()
	This operation retrieves the default value of the DomainParticipant QoS, that is, the QoS policies which will be used for newly created org.omg.dds.domain.DomainParticipant entities in the case where the QoS policies are defaulted in the createParticipant() operation. More...
ServiceEnvironment	getEnvironment ()
abstract DomainParticipantFactoryQos	getQos ()
	This operation returns the value of the DomainParticipantFactory QoS policies. More...
abstract DomainParticipant	lookupParticipant (int domainId)
	This operation retrieves a previously created DomainParticipant belonging to specified domain ID. More...
abstract void	setDefaultParticipantQos (DomainParticipantQos qos)
	This operation sets a default value of the DomainParticipant QoS policies which will be used for newly created org.omg.dds.domain.DomainParticipant entities in the case where the QoS policies are defaulted in the createParticipant() operation. More...
abstract void	setQos (DomainParticipantFactoryQos qos)
	This operation sets the value of the DomainParticipantFactory QoS policies. More...

Static Public Member Functions
static DomainParticipantFactory	getInstance (ServiceEnvironment env)
	This operation returns the per-ServiceEnvironment DomainParticipantFactory singleton. More...

Detailed Description

The sole purpose of this class is to allow the creation and destruction of org.omg.dds.domain.DomainParticipant objects.

DomainParticipantFactory itself has no factory. It is a pre-existing per-org.omg.dds.core.ServiceEnvironment singleton object that can be accessed by means of the getInstance(ServiceEnvironment) operation.

Example

// Set "serviceClassName" property to OpenSplice implementation
System.setProperty(ServiceEnvironment.IMPLEMENTATION_CLASS_NAME_PROPERTY,
                "org.opensplice.dds.core.OsplServiceEnvironment");
// Instantiate a DDS ServiceEnvironment
ServiceEnvironment env = ServiceEnvironment.createInstance(ApplicationClassName.class.getClassLoader());
// Get the DomainParticipantFactory
DomainParticipantFactory dpf = DomainParticipantFactory.getInstance(env);

Definition at line 49 of file DomainParticipantFactory.java.

Member Function Documentation

createParticipant() [1/4]

abstract DomainParticipant org.omg.dds.domain.DomainParticipantFactory.createParticipant ( )

abstract

Create a new participant in the domain with ID 0 having default QoS and no listener.

See also

createParticipant(int)

#createParticipant(int, DomainParticipantQos, DomainParticipantListener, Collection)

Exceptions

org.omg.dds.core.DDSException	An internal error has occurred.
org.omg.dds.core.OutOfResourcesException	The Data Distribution Service ran out of resources to complete this operation.

createParticipant() [2/4]

abstract DomainParticipant org.omg.dds.domain.DomainParticipantFactory.createParticipant ( int  domainId )

abstract

This operation creates a new DomainParticipant object.

The DomainParticipant signifies that the calling application intends to join the domain identified by the domainId argument.

Parameters

domainId

The ID of the Domain to which the DomainParticipant is joined. This should be the ID as specified in the configuration file. This will also be applicable for the lookupParticipant and getDomainid operations.

Exceptions

org.omg.dds.core.DDSException	An internal error has occurred.
org.omg.dds.core.OutOfResourcesException	The Data Distribution Service ran out of resources to complete this operation.

See also

createParticipant()

#createParticipant(int, DomainParticipantQos, DomainParticipantListener, Collection)

Returns

a new DomainParticipant object

createParticipant() [3/4]

abstract DomainParticipant org.omg.dds.domain.DomainParticipantFactory.createParticipant ( int  domainId, DomainParticipantQos  qos, DomainParticipantListener  listener, Collection< Class<? extends Status >>  statuses  )

abstract

This operation creates a new DomainParticipant object with the specified QoS, listener, and statuses.

The DomainParticipant signifies that the calling application intends to join the domain identified by the domainId argument.

For each communication status, the StatusChangedFlag flag is initially set to false. It becomes true whenever that communication status changes. For each communication status activated in the mask, the associated org.omg.dds.domain.DomainParticipantListener operation is invoked and the communication status is reset to false, as the listener implicitly accesses the status which is passed as a parameter to that operation. The status is reset prior to calling the listener, so if the application calls the get<status_name>Status from inside the listener it will see the status already reset. The following statuses are applicable to the DomainParticipantListener:

• OfferedDeadlineMissedStatus
• OfferedIncompatibleQosStatus
• LivelinessLostStatus
• PublicationMatchedStatus
• RequestedDeadlineMissedStatus
• RequestedIncompatibleQosStatus
• SampleRejectedStatus
• LivelinessChangedStatus
• DataAvailableStatus
• SubscriptionMatchedStatus
• SampleLostStatus
• InconsistentTopicStatus

Parameters

domainId	The ID of the Domain to which the DomainParticipant is joined. This should be the ID as specified in the configuration file. This will also be applicable for the lookupParticipant and getDomainid operations.
qos	The desired QoS policies. If the specified QoS policies are not consistent, the operation will fail and no Subscriber will be created.
listener	The listener to be attached.
statuses	Of which status changes the listener should be notified. A null collection signifies all status changes.

Exceptions

org.omg.dds.core.InconsistentPolicyException	if the specified QoS policies are not consistent.
org.omg.dds.core.DDSException	An internal error has occurred.
org.omg.dds.core.OutOfResourcesException	The Data Distribution Service ran out of resources to complete this operation.

See also

createParticipant()

createParticipant(int)

Returns

a new DomainParticipant object

createParticipant() [4/4]

abstract DomainParticipant org.omg.dds.domain.DomainParticipantFactory.createParticipant ( int  domainId, DomainParticipantQos  qos, DomainParticipantListener  listener, Class<? extends Status >...  statuses  )

abstract

This operation creates a new DomainParticipant object with the specified QoS and the specified listener.

The DomainParticipant signifies that the calling application intends to join the domain identified by the domainId argument.

For each communication status, the StatusChangedFlag flag is initially set to false. It becomes true whenever that communication status changes. For each communication status activated in the mask, the associated org.omg.dds.domain.DomainParticipantListener operation is invoked and the communication status is reset to false, as the listener implicitly accesses the status which is passed as a parameter to that operation. The status is reset prior to calling the listener, so if the application calls the get<status_name>Status from inside the listener it will see the status already reset. The following statuses are applicable to the DomainParticipantListener:

• OfferedDeadlineMissedStatus
• OfferedIncompatibleQosStatus
• LivelinessLostStatus
• PublicationMatchedStatus
• RequestedDeadlineMissedStatus
• RequestedIncompatibleQosStatus
• SampleRejectedStatus
• LivelinessChangedStatus
• DataAvailableStatus
• SubscriptionMatchedStatus
• SampleLostStatus
• InconsistentTopicStatus

Parameters

domainId	The ID of the Domain to which the DomainParticipant is joined. This should be the ID as specified in the configuration file. This will also be applicable for the lookupParticipant and getDomainid operations.
qos	The desired QoS policies. If the specified QoS policies are not consistent, the operation will fail and no Subscriber will be created.
listener	The listener to be attached.
statuses	Of which status changes the listener should be notified. A null collection signifies all status changes.

Exceptions

org.omg.dds.core.InconsistentPolicyException	if the specified QoS policies are not consistent.
org.omg.dds.core.DDSException	An internal error has occurred.
org.omg.dds.core.OutOfResourcesException	The Data Distribution Service ran out of resources to complete this operation.

See also

createParticipant()

createParticipant(int)

Returns

a new DomainParticipant object

getDefaultParticipantQos()

abstract DomainParticipantQos org.omg.dds.domain.DomainParticipantFactory.getDefaultParticipantQos ( )

abstract

This operation retrieves the default value of the DomainParticipant QoS, that is, the QoS policies which will be used for newly created org.omg.dds.domain.DomainParticipant entities in the case where the QoS policies are defaulted in the createParticipant() operation.

The values retrieved will match the set of values specified on the last successful call to setDefaultParticipantQos(DomainParticipantQos), or else, if the call was never made, the default values identified by the DDS specification.

Returns

the default DomainParticipantQos object

See also

setDefaultParticipantQos(DomainParticipantQos)

getEnvironment()

ServiceEnvironment org.omg.dds.core.DDSObject.getEnvironment ( )

inherited

Returns

the org.omg.dds.core.ServiceEnvironment object that directly or indirectly was used to create this object.

Implemented in org.omg.dds.core.ServiceEnvironment, org.opensplice.dds.sub.ReflectionDataReader< TYPE, OUT_TYPE >, org.opensplice.dds.core.ModifiableTimeImpl, org.opensplice.dds.pub.ReflectionDataWriter< TYPE >, org.opensplice.dds.core.DurationImpl, org.opensplice.dds.topic.ContentFilteredTopicImpl< TYPE >, org.opensplice.dds.sub.ReadConditionImpl< TYPE >, org.opensplice.dds.core.EntityQosImpl< T extends QosPolicy >, org.opensplice.dds.type.TypeSupportImpl< TYPE >, org.opensplice.dds.topic.PublicationBuiltinTopicDataImpl, org.opensplice.dds.topic.SubscriptionBuiltinTopicDataImpl, org.opensplice.dds.topic.TopicBuiltinTopicDataImpl, org.opensplice.dds.domain.DomainParticipantFactoryImpl, org.opensplice.dds.core.QosProviderImpl, org.opensplice.dds.core.status.OfferedIncompatibleQosStatusImpl, org.opensplice.dds.core.status.RequestedIncompatibleQosStatusImpl, org.opensplice.dds.core.InstanceHandleImpl, org.opensplice.dds.core.StatusConditionImpl< T extends Entity<?, ?>, org.opensplice.dds.core.status.LivelinessChangedStatusImpl, org.opensplice.dds.core.status.PublicationMatchedStatusImpl, org.opensplice.dds.core.status.SubscriptionMatchedStatusImpl, org.opensplice.dds.sub.SampleImpl< TYPE >, org.opensplice.dds.core.policy.ShareImpl, org.opensplice.dds.core.status.OfferedDeadlineMissedStatusImpl, org.opensplice.dds.core.status.SampleRejectedStatusImpl, org.opensplice.dds.core.WaitSetImpl, org.opensplice.dds.topic.ParticipantBuiltinTopicDataImpl, org.opensplice.dds.core.status.RequestedDeadlineMissedStatusImpl, org.opensplice.dds.topic.BuiltinTopicKeyImpl, org.opensplice.dds.core.GuardConditionImpl, org.opensplice.dds.core.event.AllDataDisposedEventImpl< TYPE >, org.opensplice.dds.core.policy.QosPolicyCountImpl, org.opensplice.dds.core.status.InconsistentTopicStatusImpl, org.opensplice.dds.core.status.LivelinessLostStatusImpl, org.opensplice.dds.core.status.SampleLostStatusImpl, org.opensplice.dds.core.policy.QosPolicyImpl, org.opensplice.dds.core.status.AllDataDisposedStatusImpl, org.opensplice.dds.core.IllegalArgumentExceptionImpl, org.opensplice.dds.core.InconsistentPolicyExceptionImpl, org.opensplice.dds.core.policy.PolicyFactoryImpl, org.opensplice.dds.core.policy.TypeConsistencyEnforcementImpl, org.opensplice.dds.core.PreconditionNotMetExceptionImpl, org.opensplice.dds.core.AlreadyClosedExceptionImpl, org.opensplice.dds.core.IllegalOperationExceptionImpl, org.opensplice.dds.core.ImmutablePolicyExceptionImpl, org.opensplice.dds.core.NotEnabledExceptionImpl, org.opensplice.dds.core.OutOfResourcesExceptionImpl, org.opensplice.dds.core.DDSExceptionImpl, org.opensplice.dds.core.status.DataAvailableStatusImpl, and org.opensplice.dds.core.status.DataOnReadersStatusImpl.

getInstance()

static DomainParticipantFactory org.omg.dds.domain.DomainParticipantFactory.getInstance ( ServiceEnvironment  env )

static

This operation returns the per-ServiceEnvironment DomainParticipantFactory singleton.

The operation is idempotent, that is, it can be called multiple times without side effects, and each time it will return a DomainParticipantFactory instance that is equal to the previous results.

Parameters

env	Identifies the Service instance to which the object will belong.

Definition at line 65 of file DomainParticipantFactory.java.

getQos()

abstract DomainParticipantFactoryQos org.omg.dds.domain.DomainParticipantFactory.getQos ( )

abstract

This operation returns the value of the DomainParticipantFactory QoS policies.

Returns

a DomainParticipantFactoryQos object

See also

setQos(DomainParticipantFactoryQos)

lookupParticipant()

abstract DomainParticipant org.omg.dds.domain.DomainParticipantFactory.lookupParticipant ( int  domainId )

abstract

This operation retrieves a previously created DomainParticipant belonging to specified domain ID.

If no such DomainParticipant exists, the operation will return null.

If multiple DomainParticipant entities belonging to that domain ID exist, then the operation will return one of them. It is not specified which one.

Parameters

domainId

the ID of the Domain for which a joining DomainParticipant should be retrieved. This should be the ID as specified in the configuration file.

Returns

a DomainParticipant object

setDefaultParticipantQos()

abstract void org.omg.dds.domain.DomainParticipantFactory.setDefaultParticipantQos ( DomainParticipantQos  qos )

abstract

This operation sets a default value of the DomainParticipant QoS policies which will be used for newly created org.omg.dds.domain.DomainParticipant entities in the case where the QoS policies are defaulted in the createParticipant() operation.

Parameters

qos	An object of the DomainParticipantQos class, which contains the new default DomainParticipantQos for the newly created DomainParticipants.

Exceptions

org.omg.dds.core.InconsistentPolicyException	if the resulting policies are not self consistent; in that case, the operation will have no effect.
org.omg.dds.core.DDSException	An internal error has occurred.
org.omg.dds.core.OutOfResourcesException	The Data Distribution Service ran out of resources to complete this operation.

See also

getDefaultParticipantQos()

setQos()

abstract void org.omg.dds.domain.DomainParticipantFactory.setQos ( DomainParticipantFactoryQos  qos )

abstract

This operation sets the value of the DomainParticipantFactory QoS policies.

These policies control the behavior of the object, a factory for entities.

Note that despite having QoS, the DomainParticipantFactory is not an org.omg.dds.core.Entity.

Parameters

qos	Must contain the new set of QosPolicy settings for the DomainParticipantFactory.

Exceptions

org.omg.dds.core.InconsistentPolicyException	if the resulting policies are not self consistent; in that case, the operation will have no effect.
org.omg.dds.core.DDSException	An internal error has occurred.
org.omg.dds.core.OutOfResourcesException	The Data Distribution Service ran out of resources to complete this operation.

See also

getQos()

---

The documentation for this class was generated from the following file:

• java5/common/java/code/org/omg/dds/domain/DomainParticipantFactory.java
