dds::core::policy::Presentation Class Reference

More...

#include "CorePolicy.hpp"

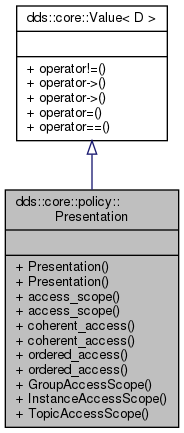

Inheritance diagram for dds::core::policy::Presentation:

Public Member Functions
	Presentation (dds::core::policy::PresentationAccessScopeKind::Type access_scope=dds::core::policy::PresentationAccessScopeKind::INSTANCE, bool coherent_access=false, bool ordered_access=false)
	Presentation (const Presentation &other)
Presentation &	access_scope (dds::core::policy::PresentationAccessScopeKind::Type access_scope)
dds::core::policy::PresentationAccessScopeKind::Type	access_scope () const
Presentation &	coherent_access (bool coherent_access)
bool	coherent_access () const
bool	operator!= (const Value &other) const
D *	operator-> ()
const D *	operator-> () const
bool	operator== (const Value &other) const
Presentation &	ordered_access (bool ordered_access)
bool	ordered_access () const

Static Public Member Functions
static Presentation	GroupAccessScope (bool coherent_access=false, bool ordered_access=false)
static Presentation	InstanceAccessScope (bool coherent_access=false, bool ordered_access=false)
static Presentation	TopicAccessScope (bool coherent_access=false, bool ordered_access=false)

Detailed Description

This QosPolicy controls the extent to which changes to data-instances can be made dependent on each other, the order in which they need to be presented to the user and also the kind of dependencies that can be propagated and maintained by the Data Distribution Service.

Attributes

Value	Meaning	Concerns	RxO	Changeable
A PresentationQosPolicyAccessScopeKind: access_scope	Specifies how the samples representing changes to data instances are presented to the subscribing application. This policy affects the application’s ability to specify and receive coherent changes and to see the relative order of changes. access_scope determines the largest scope spanning the entities for which the order and coherency of changes can be preserved. Options are INSTANCE,TOPIC and GROUP where the default is INSTANCE	Publisher, Subscriber	Yes	No
INSTANCE	Scope spans only a single instance. Indicates that changes to one instance need not be coherent nor ordered with respect to changes to any other instance. In other words, order and coherent changes apply to each instance separately. This is the default access_scope.
TOPIC	Scope spans to all instances within the same DataWriter (or DataReader), but not across instances in different DataWriter (or DataReader).
GROUP	Scope spans to all instances belonging to DataWriter (or DataReader) entities within the same Publisher (or Subscriber).
A boolean: coherent_access	Specifies support coherent access. That is, the ability to group a set of changes as a unit on the publishing end such that they are received as a unit at the subscribing end. The default setting of coherent_access is FALSE.
A boolean: ordered_access	Specifies support for ordered access to the samples received at the subscription end. That is, the ability of the Subscriber to see changes in the same order as they occurred on the publishing end. The default setting of ordered_access is FALSE.

This QoS policy controls the extent to which changes to data-instances can be made dependent on each other, the order in which they need to be presented to the user and also the kind of dependencies that can be propagated and maintained by the Service.

The support for ‘coherent changes’ enables a publishing application to change the value of several data-instances that could belong to the same or different topics and have those changes be seen ‘atomically’ by the readers. This is useful in cases where the values are inter-related. For example, if there are two data-instances representing the ‘altitude’ and ‘velocity vector’ of the same aircraft and both are changed, it may be useful to communicate those values in a way the reader can see both together; otherwise it may erroneously interpret that the aircraft is on a collision course. Basically this QosPolicy allows a Publisher to group a number of samples by writing them within a scope that holds a CoherentSet object and treat them as if they are to be communicated as a single message. That is, the receiver will only be able to access the data after all the modifications in the set are available at the receiver end.

Samples that belong to a (yet) unfinished coherent update consume resource limits from the receiving DataReader, but are not (yet) accessible through its history, and cannot (yet) push samples out of its history. In order for the DataReader to store samples outside its history administration, its ResourceLimitsQosPolicy should have a value for max_samples_per_instance that is bigger than the depth value of its HistoryQosPolicy.

If not enough resources are available to hold an incoming sample that belongs to an unfinshed transaction, one of the following things may happen.

• When some of the resources are in use by the history of the DataReader, the incoming sample will be rejected, and the DataReader will be notified of a SAMPLE_REJECTED event. This will cause the delivery mechanism to retry delivery of the rejected sample at a later moment in time, in the expectation that the application will free resources by actively taking samples out of the reader history.
• When all the available resources are in use by samples belonging to unfinished coherent updates, the application has no way to free up resources and the transaction is either ‘deadlocked’ by itself (i.e. it is too big for the amount of available resources) or by one or more other incomplete transactions. To break out of this deadlock, all samples belonging to the same transaction as the currently incoming sample will be dropped, and the DataReader will be notified of a SAMPLE_LOST event. No attempt will be made to retransmit the dropped transaction. To avoid this scenario, it is important to make sure the DataReader has set its ResourceLimits to accommodate for the worst case history size PLUS the worst case transaction size. In other words, if Sh represents the worst case size of the required history, St represents the worst case size of single transaction and Nt represents the worst case number of concurrent transactions, then the ResourceLimits should accomodate for Sh + (St * Nt).

A connectivity change may occur in the middle of a set of coherent changes; for example, the set of partitions used by the Publisher or one of its Subscribers may change, a late-joining DataReader may appear on the network, or a communication failure may occur. In the event that such a change prevents an entity from receiving the entire set of coherent changes, that entity must behave as if it had received none of the set.

The support for ‘ordered_access’ enables a subscribing application to view changes in the order in which they occurred. Ordering is always determined according to the applicable DestinationOrderQosPolicy setting. Depending on the selected access_scope, ordering is either on a per instance basis (this is the default behaviour, even when ordered_access is set to FALSE), on a per DataReader basis or across all DataReaders that span the Subscriber. In case of ordered_access with an acces_scope of GROUP, the Subscriber will enforce that all its DataReaders share the same DestinationOrderQosPolicy setting. The DestinationOrderQosPolicy setting of the first DataReader created for that Subscriber will then determine the DestinationOrderQosPolicy setting that is allowed for all subsequent DataReaders. Conflicting settings will result in an INCONSISTENT_POLICY error.

The PresentationQosPolicy is applicable to both Publisher and Subscriber, but behaves differently on the publishing side and the subscribing side. The setting of coherent_access on a Publisher controls whether that Publisher will preserve the coherency of changes within a scope that holds a CoherentSet object , as indicated by its access_scope and as made available by its embedded DataWriters. However, the Subscriber settings determine whether a coherent set of samples will actually be delivered to the subscribing application in a coherent way.

• If a Publisher or Subscriber sets coherent_access to FALSE, it indicates that it does not want to maintain coherency between the different samples in a set: a Subscriber that receives only a part of this set may still deliver this partial set of samples to its embedded DataReaders.
• If both Publisher and Subscriber set coherent_access to TRUE, they indicate that they want to maintain coherency between the different samples in a set: a Subscriber that receives only a part of this set may not deliver this partial set of samples to its embedded DataReaders; it needs to wait for the set to become complete, and it will flush this partial set when it concludes that it will never be able to complete it.

Coherency is implemented on top of a transaction mechanism between individual DataWriters and DataReaders; completeness of a coherent set is determined by the successful completion of each of its participating transactions. The value of the access_scope attribute determines which combination of transactions constitute the contents of a coherent set.

The setting of ordered_access has no impact on the way in which a Publisher transmits its samples (although it does influence the RxO properties of this Publisher), but basically it determines whether a Subscriber will preserve the ordering of samples when the subscribing application uses its embedded DataReaders to read or take samples:

• If a Subscriber sets ordered_access to FALSE, it indicates that it does not want to maintain ordering between the different samples it receives: a subscribing application that reads or takes samples will receive these samples ordered by their key-values, which does probably not resemble the order they were written in.
• If a Subscriber sets ordered_access to TRUE, it indicates that it does want to maintain ordering within the specified access_scope between the different samples it receives: a subscribing application that reads or takes samples will receives these samples sorted by the order in which they were written.

The access_scope determines the maximum extent of coherent and/or ordered changes:

• If access_scope is set to INSTANCE and coherent_access is set to TRUE, then the Subscriber will behave, with respect to maintaining coherency, in a way similar to an access_scope that is set to TOPIC. This is caused by the fact that coherency is defined as the successful completion of all participating transactions. If a DataWriter writes a transaction containing samples from different instances, and a connected DataReader misses one of these samples, then the transaction failed and the coherent set is considered incomplete by the receiving DataReader. It doesn’t matter that all the other instances have received their samples successfully; an unsuccessful transaction by definition results in an incomplete coherent set. In that respect the DDS can offer no granularity that is more fine-grained with respect to coherency than that described by the TOPIC. If access_scope is set to INSTANCE and ordered_access is set to TRUE, then the Subscriber will maintain ordering between samples belonging to the same instance. Samples belonging to different instances will still be grouped by their key-values instead of by the order in which they were received.
• If access_scope is set to TOPIC and coherent_access is set to TRUE, then the DDS will define the scope of a coherent set on individual transactions. So a coherent set that spans samples coming from multiple DataWriters (indicated by the scope of the CoherentSet object), is chopped up into separate and disjunct transactions (one for each participating DataWriter), where each transaction is processed separately. On the subscribing side this may result in the successful completion of some of these transactions, and the unsuccessful completion of some others. In such cases all DataReaders that received successful transactions will deliver the embedded content to their applications, without waiting for the completion of other transactions in other DataReaders connected to the same Subscriber. If access_scope is set to TOPIC and ordered_access is set to TRUE, then the Subscriber will maintain ordering between samples belonging to the same DataReader. This means that samples belonging to the same instance in the same DataReader may no longer be received consecutively if samples belonging to different instances were written in between. It is possible to read/take a limited batch of ordered samples (where max_samples != LENGTH_UNLIMITED). In that case the DataReader will keep a bookmark, so that in subsequent read/take operations your application can start where the previous read/take call left off. There are two ways for the middleware to indicate that you completed a full iteration:
  • The amount of samples returned is smaller than the amount of samples requested. In that case the bookmark is automatically reset and the next read/take will begin a new iteration right from the start of the ordered list.
  • Your read/take call returns RETCODE_NO_DATA, indicating that there are no more samples matching your criteria after the current bookmark. In that case the bookmark is reset as well. The bookmark is also reset in the following cases:
  • A read/take call uses different masks than the previous invocation of read/take.
  • A read/take call uses a different query than the previous invocation of read/take.
• If access_scope is set to GROUP and coherent_access is set to TRUE, then the DDS will define the scope of a coherent set on the sum of all participating transactions. So a coherent set that spans samples coming from multiple DataWriters (indicated by the scope of the CoherentSet object), is chopped up into separate and disjunct transactions (one for each participating DataWriter), where each transactions is processed separately. On the subscribing side this may result in the successful completion of some of these transactions, and the unsuccessful completion of some others. However, each DataReader is only allowed to deliver the embedded content when all participating transactions completed successfully. This means that DataReaders that received successful transactions will need to wait for all other DataReaders attached to the same Subscriber to also complete their transactions successfully. If one or more DataReaders conclude that they will not be able to complete their transactions successfully, then all DataReaders that participate in the original coherent set will flush the content of their transactions. In order for the application to access the state of all DataReaders that span the coherent update, a separate read/take operation will need to be performed on each of the concerned DataReaders. To keep the history state of the DataReaders consistent in between the successive invocations of the read/take operations on the various readers, the DataReaders should be locked for incoming updates by starting a new scope that holds a CoherentAccess object. If all concerned DataReaders have been accessed properly, they can be unlocked for incoming updates by ending the scope that holds the CoherentAccess object or by explicitly invoking its operation named "end". Note that in this case a Subscriber is created in a disabled state. This allows the application to create all concerned DataReaders, preventing any transactions from completing prematurely before all DataReaders have been created. The application must explicitly enable the subscriber after it has finished creating DataReaders.

If access_scope is set to GROUP and ordered_access is set to TRUE, then ordering is maintained between samples that are written by DataWriters attached to a common Publisher and received by DataReaders attached to a common Subscriber. This way the subscribing application can access the changes as a unit and/or in the proper order. However, this does not necessarily imply that the subscribing application will indeed access the changes as a unit and/or in the correct order. For that to occur, the subscribing application must use the proper logic in accessing its datareaders:

• Upon notification by the callback operation on_data_on_readers of the SubscriberListener or when triggered by the similar DATA_ON_READERS status of the Subscriber’s StatusCondition, the application starts a new scope holding a CoherentAccess object to indicate it will be accessing data through the Subscriber. This will lock the embedded datareaders for any incoming messages during the coherent data access.
• Then it invokes dds::sub::find function to get the list of DataReader objects where data samples are available. Note that when ordered_access is TRUE, then the list of DataReaders may contain the same reader several times. In this manner the correct sample order can be maintained among samples in different DataReader objects.
• Following this it calls read or take on each DataReader in the same order returned to access all the relevant changes in the DataReader. Note that when ordered_access is TRUE, you should only read or take one sample at a time.
• Once it has called read or take on all the readers, it ends the scope that holds the CoherentAccess object or it explicitly invokes its operation named "end" This will unlock the embedded datareaders again.

The value offered is considered compatible with the value requested if and only if the following conditions are met:

1. The inequality “offered access_scope >= requested access_scope” evaluates to ‘TRUE.’ For the purposes of this inequality, the values of PRESENTATION access_scope are considered ordered such that INSTANCE < TOPIC < GROUP.
2. Requested coherent_access is FALSE, or else both offered and requested coherent_access are TRUE.
3. Requested ordered_access is FALSE, or else both offered and requested ordered _access are TRUE.

For a DataWriter that is attached to a Publisher which has coherent-access set to TRUE and the access-scope set to TOPIC or GROUP there is a constraint on the HistoryQosPolicy. In that case the HistoryQosPolicy should be set to KEEP-ALL. This constraint is applied because for a DataWriter with a HistoryQosPolicy set to KEEP-LAST the samples in the DataWriter history may be overwritten by new samples which causes that the corresponding transaction will not become complete anymore because of the missing samples.

Definition at line 1046 of file CorePolicy.hpp.

Constructor & Destructor Documentation

Presentation() [1/2]

dds::core::policy::Presentation::Presentation	(	dds::core::policy::PresentationAccessScopeKind::Type	access_scope = dds::core::policy::PresentationAccessScopeKind::INSTANCE,
		bool	coherent_access = false,
		bool	ordered_access = false
	)

Creates a Presentation QoS instance

Parameters

access_scope	the access_scope kind
coherent_access	the coherent_access setting
ordered_access	the ordered_access setting

Definition at line 643 of file CorePolicyImpl.hpp.

Presentation() [2/2]

dds::core::policy::Presentation::Presentation

(

const Presentation &

other

)

Copies a Presentation QoS instance

Parameters

other

the Presentation QoS instance to copy

Definition at line 647 of file CorePolicyImpl.hpp.

Member Function Documentation

access_scope() [1/2]

Presentation & dds::core::policy::Presentation::access_scope

(

dds::core::policy::PresentationAccessScopeKind::Type

access_scope

)

Sets the access_scope kind

Parameters

access_scope

the access_scope kind

Definition at line 651 of file CorePolicyImpl.hpp.

access_scope() [2/2]

dds::core::policy::PresentationAccessScopeKind::Type dds::core::policy::Presentation::access_scope

(

)

const

Gets the access_scope kind

Returns

the access_scope kind

Definition at line 658 of file CorePolicyImpl.hpp.

coherent_access() [1/2]

Presentation & dds::core::policy::Presentation::coherent_access

(

bool

coherent_access

)

Sets the coherent_access setting

Parameters

coherent_access

the coherent_access setting

Definition at line 664 of file CorePolicyImpl.hpp.

coherent_access() [2/2]

bool dds::core::policy::Presentation::coherent_access

(

)

const

Gets the coherent_access setting

Returns

the coherent_access setting

Definition at line 671 of file CorePolicyImpl.hpp.

GroupAccessScope()

Presentation dds::core::policy::Presentation::GroupAccessScope ( bool  coherent_access = false, bool  ordered_access = false  )

static

Parameters

coherent_access	the coherent_access setting
ordered_access	the ordered_access setting

Returns

a Presentation QoS instance with a GROUP access_score and coherent_access and ordered_access set to the specified values

Definition at line 690 of file CorePolicyImpl.hpp.

InstanceAccessScope()

Presentation dds::core::policy::Presentation::InstanceAccessScope ( bool  coherent_access = false, bool  ordered_access = false  )

static

Parameters

coherent_access	the coherent_access setting
ordered_access	the ordered_access setting

Returns

a Presentation QoS instance with a INSTANCE access_score and coherent_access and ordered_access set to the specified values

Definition at line 696 of file CorePolicyImpl.hpp.

operator!=()

template<typename D >

bool dds::core::Value< D >::operator!= ( const Value< D > &  other ) const

inherited

Compare this Value with another Value

Parameters

other

Value

Returns

true if not equal

Definition at line 99 of file Value.hpp.

operator->() [1/2]

template<typename D >

D * dds::core::Value< D >::operator-> ( )

inherited

The operator->() is provided to be able to directly invoke functions on the delegate.

The decision to provide direct access to the delegate was motivated by the need for providing a way that was not invasive with respect to the CXXDDS API and yet would allow for vendor-specific extension. Thus vendor-specific extensions can be invoked on the Value and on all its subclasses as follows:

my_dds_value.standard_function();
my_dds_value->vendor_specific_extension();

Returns

a reference to delegate.

Definition at line 111 of file Value.hpp.

operator->() [2/2]

template<typename D >

const D * dds::core::Value< D >::operator-> ( ) const

inherited

The operator->() is provided to be able to directly invoke functions on the delegate.

The decision to provide direct access to the delegate was motivated by the need for providing a way that was not invasive with respect to the CXXDDS API and yet would allow for vendor-specific extension. Thus vendor-specific extensions can be invoked on the Value and on all its subclasses as follows:

my_dds_value.standard_function();
my_dds_value->vendor_specific_extension();

Returns

a reference to delegate.

Definition at line 105 of file Value.hpp.

operator==()

template<typename D >

bool dds::core::Value< D >::operator== ( const Value< D > &  other ) const

inherited

Compare this Value with another Value

Parameters

other

Value

Returns

true if equal

Definition at line 93 of file Value.hpp.

ordered_access() [1/2]

Presentation & dds::core::policy::Presentation::ordered_access

(

bool

ordered_access

)

Sets the ordered_access setting

Parameters

ordered_access

the ordered_access setting

Definition at line 677 of file CorePolicyImpl.hpp.

ordered_access() [2/2]

bool dds::core::policy::Presentation::ordered_access

(

)

const

Gets the ordered_access setting

Returns

the ordered_access setting

Definition at line 684 of file CorePolicyImpl.hpp.

TopicAccessScope()

Presentation dds::core::policy::Presentation::TopicAccessScope ( bool  coherent_access = false, bool  ordered_access = false  )

static

Parameters

coherent_access	the coherent_access setting
ordered_access	the ordered_access setting

Returns

a Presentation QoS instance with a TOPIC access_score and coherent_access and ordered_access set to the specified values

Definition at line 702 of file CorePolicyImpl.hpp.

---

The documentation for this class was generated from the following files:

• include/dcps/C++/isocpp2/dds/core/policy/CorePolicy.hpp
• include/dcps/C++/isocpp2/dds/core/policy/detail/CorePolicyImpl.hpp
