dds::core::policy::UserData Class Reference

More...

#include "CorePolicy.hpp"

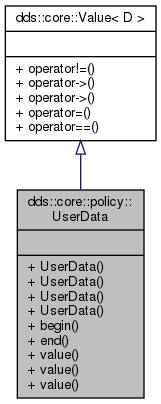

Inheritance diagram for dds::core::policy::UserData:

Public Member Functions
	UserData ()
	UserData (const dds::core::ByteSeq &sequence)
	UserData (const uint8_t *value_begin, const uint8_t *value_end)
	UserData (const UserData &other)
const uint8_t *	begin () const
const uint8_t *	end () const
bool	operator!= (const Value &other) const
D *	operator-> ()
const D *	operator-> () const
bool	operator== (const Value &other) const
UserData &	value (const dds::core::ByteSeq &sequence)
template<typename OCTET_ITER >
UserData &	value (OCTET_ITER begin, OCTET_ITER end)
const dds::core::ByteSeq	value () const

Detailed Description

This QosPolicy allows the application to attach additional information to a DomainParticipant, DataReader or DataWriter entity. This information is distributed with the BuiltinTopics.

Attributes

Value	Meaning	Concerns	RxO	Changeable
A sequence of octets: value	A sequence of octets that holds the application user data. By default, the sequence has length 0.	DomainParticipant, DataReader, DataWriter	No	Yes

This QosPolicy allows the application to attach additional information to a DomainParticipant, DataReader or DataWriter entity. This information is distributed with the Builtin Topics. An application that discovers a new Entity ofthe listed kind, can use this information to add additional functionality. The UserDataQosPolicy is changeable and updates of the Builtin Topic instance must be expected. Note that the Data Distribution Service is not aware of the real structure of the user data (the Data Distribution System handles it as an opaque type) and that the application is responsible for correct mapping on structural types for the specific platform.

Definition at line 41 of file CorePolicy.hpp.

Constructor & Destructor Documentation

UserData() [1/4]

dds::core::policy::UserData::UserData

(

)

Creates a UserData QoS instance with an empty UserData

Definition at line 46 of file CorePolicyImpl.hpp.

UserData() [2/4]

dds::core::policy::UserData::UserData ( const dds::core::ByteSeq &  sequence )

explicit

Creates a UserData QoS instance

Parameters

sequence

the sequence of octets

Definition at line 49 of file CorePolicyImpl.hpp.

UserData() [3/4]

dds::core::policy::UserData::UserData	(	const uint8_t *	value_begin,
		const uint8_t *	value_end
	)

Creates a UserData QoS instance

Parameters

value_begin	a pointer to the beginning of a sequence of octets
value_end	a pointer to the end of a sequence of octets

Definition at line 53 of file CorePolicyImpl.hpp.

UserData() [4/4]

dds::core::policy::UserData::UserData

(

const UserData &

other

)

Copies a UserData QoS instance

Parameters

other

the UserData QoS instance to copy

Definition at line 59 of file CorePolicyImpl.hpp.

Member Function Documentation

begin()

const uint8_t * dds::core::policy::UserData::begin

(

)

const

Gets a pointer to the first octet in the sequence

Returns

a pointer to the first octet in the sequence

Definition at line 92 of file CorePolicyImpl.hpp.

end()

const uint8_t * dds::core::policy::UserData::end

(

)

const

Gets a pointer to the last octet in the sequence

Returns

a pointer to the first octet in the sequence

Definition at line 107 of file CorePolicyImpl.hpp.

operator!=()

template<typename D >

bool dds::core::Value< D >::operator!= ( const Value< D > &  other ) const

inherited

Compare this Value with another Value

Parameters

other

Value

Returns

true if not equal

Definition at line 99 of file Value.hpp.

operator->() [1/2]

template<typename D >

D * dds::core::Value< D >::operator-> ( )

inherited

The operator->() is provided to be able to directly invoke functions on the delegate.

The decision to provide direct access to the delegate was motivated by the need for providing a way that was not invasive with respect to the CXXDDS API and yet would allow for vendor-specific extension. Thus vendor-specific extensions can be invoked on the Value and on all its subclasses as follows:

my_dds_value.standard_function();
my_dds_value->vendor_specific_extension();

Returns

a reference to delegate.

Definition at line 111 of file Value.hpp.

operator->() [2/2]

template<typename D >

const D * dds::core::Value< D >::operator-> ( ) const

inherited

The operator->() is provided to be able to directly invoke functions on the delegate.

The decision to provide direct access to the delegate was motivated by the need for providing a way that was not invasive with respect to the CXXDDS API and yet would allow for vendor-specific extension. Thus vendor-specific extensions can be invoked on the Value and on all its subclasses as follows:

my_dds_value.standard_function();
my_dds_value->vendor_specific_extension();

Returns

a reference to delegate.

Definition at line 105 of file Value.hpp.

operator==()

template<typename D >

bool dds::core::Value< D >::operator== ( const Value< D > &  other ) const

inherited

Compare this Value with another Value

Parameters

other

Value

Returns

true if equal

Definition at line 93 of file Value.hpp.

value() [1/3]

UserData & dds::core::policy::UserData::value

(

const dds::core::ByteSeq &

sequence

)

Sets the sequence

Parameters

sequence

a sequence of octets

Definition at line 62 of file CorePolicyImpl.hpp.

value() [2/3]

template<typename OCTET_ITER >

UserData & dds::core::policy::UserData::value	(	OCTET_ITER	begin,
		OCTET_ITER	end
	)

Sets the sequence

Parameters

begin	an iterator pointing to the beginning of a sequence of octets
end	an iterator pointing to the end of a sequence of octets

Definition at line 71 of file CorePolicyImpl.hpp.

value() [3/3]

const dds::core::ByteSeq dds::core::policy::UserData::value

(

)

const

Gets the sequence

Returns

a sequence of octets

Definition at line 85 of file CorePolicyImpl.hpp.

---

The documentation for this class was generated from the following files:

• include/dcps/C++/isocpp2/dds/core/policy/CorePolicy.hpp
• include/dcps/C++/isocpp2/dds/core/policy/detail/CorePolicyImpl.hpp
