8. Publisher Block

The Publisher block represents a DDS publisher entity.

In DDS, a publisher is “an object responsible for data distribution. It may publish data of different data types.”

This block is optional on a DDS Simulink model diagram. If it is not present on a model diagram, each writer will create a default publisher.

DDS Publisher Block

Port Type

Optional

Name

Description

Output consumed by

Input

yes

pp

DDS Domain Participant entity instance

Output

no

ppub

DDS Publisher entity instance

Writer

8.1. Publisher Block Parameters

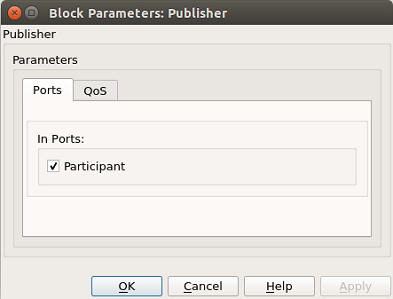

Publisher Block Parameters

8.1.1. Ports Tab

The Ports tab allows the user to toggle on or off optional ports.

8.1.2. QoS Tab

The QoS tab is used to set the QoS profile. By default, the OSPL default profile is used.

In DDS - The Data-Distribution Service (DDS) relies on the usage of QoS. A QoS (Quality of Service) is a set of characteristics that controls some aspect of the behavior of the DDS Service.

Each DDS block has an associated QoS profile. By default, the OSPL default profile is used. An XML file that specifies QoS profiles can be used to set the QoS of a DDS block.

Override Partition

The QoS tab is also used to override the partition name of the Publisher QoS. By default, the Override Partition field is not selected and the partition name given in the QoS provider file is used.

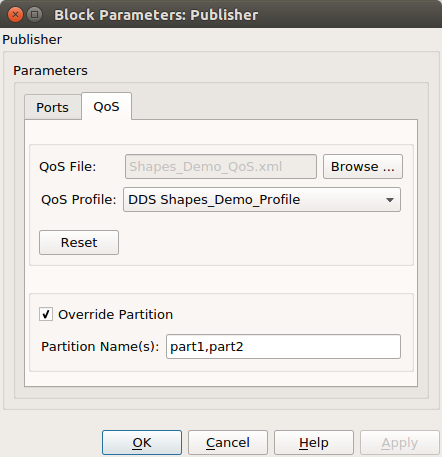

Publisher Block Parameters : Override Partition QoS

Checking the Override Partition field specifies that it will override the partition name of the Publisher QoS.

The Partition Name(s) field is for providing comma separated strings for partition names. Leaving it empty means the partition name will be set to the default value.
