11. Detailed Examples¶
In this chapter we detail in several use cases the configuration of each Vortex Link service, but also the configuration of DDS applications.

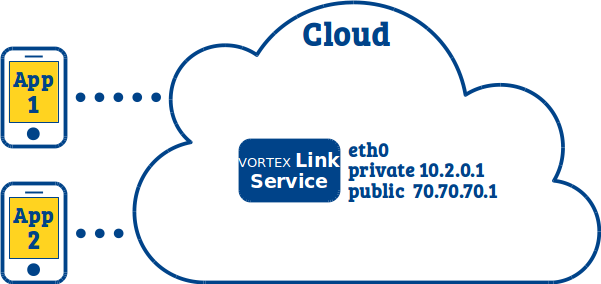

11.1. Device to Device¶
In this use case we want to enable DDS discovery and communication between devices running DDS applications over TCP (e.g. mobile applications which are usually behind a symmetric NAT, and so have no public IP). For this we need to deploy a Vortex Link service in a cloud on a host that is publicly accessible. In this example, we will consider that the cloud host that will host the service has a private IP address (10.2.0.1) but is accessible through a public Ip address (70.70.70.1).
We will configure the Vortex Link service to:
- use the network interface
eth0(as cloud hosts might be multi-homed) - use the public IP of its host (
70.70.70.1) - listen for TCP connections on port 8500
Vortex Link service:
link.network.interfaces=eth0
link.externalNetworkAddresses=70.70.70.1
link.tcp.port=8500
App 1 and 2 (using Vortex Café):
ddsi.network.udp.enabled=false
ddsi.discovery.tcp.peers=70.70.70.1:8500
ddsi.discovery.tcp.port=7400
ddsi.discovery.externalNetworkAddresses=none

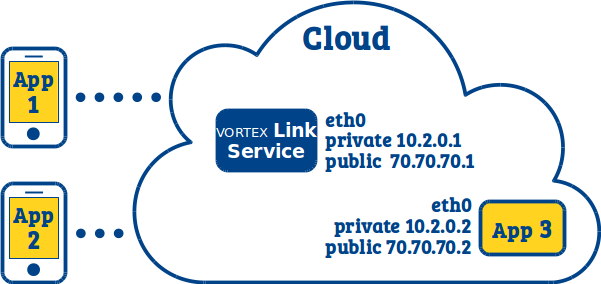

11.2. Device to Device & Device to Link¶
In this use case we want to enable DDS discovery and communication between devices with DDS applications over TCP, but also DDS applications running in the cloud (over UDP multicast or TCP).
We will configure the Vortex Link service to:
- use the network interface
eth0(as cloud hosts, might be multi-homed) - use the public IP of its host (
70.70.70.1) - listen for TCP connections on port 8500
- discover UDP multicast applications on domain 0
Vortex Link service:
link.network.interfaces=eth0
link.externalNetworkAddresses=70.70.70.1
link.tcp.port=8500
link.domainid=0
App 1 and 2 (using Vortex Café):
ddsi.network.udp.enabled=false
ddsi.discovery.tcp.peers=70.70.70.1:8500
ddsi.discovery.tcp.port=7400
ddsi.discovery.externalNetworkAddresses=none
App 3 (using Vortex Café):
If using multicast:
Nothing particular to configure (use domainId 0 by default)If using tcp:
ddsi.network.udp.enabled=false ddsi.discovery.tcp.peers=10.2.0.1:8500 ddsi.discovery.tcp.port=7400

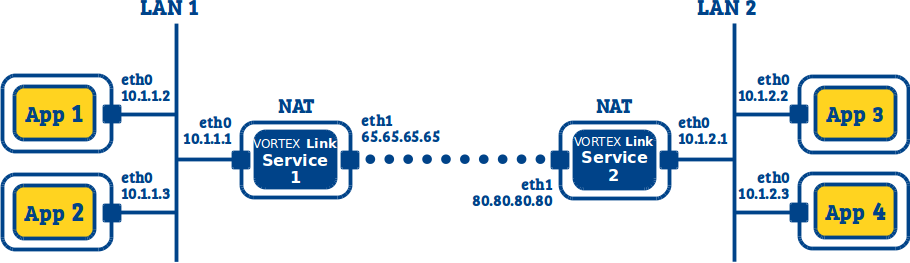

11.3. LAN to LAN (I can deploy on my Firewall/NAT)¶
In this use case we want to interconnect two LANs where DDS applications are running using UDP multicast. For this we need to deploy a Vortex Link service in each LAN.
Each Vortex Link service will discover applications in its LAN, but also get informations about the applications discovered by the remote Vortex Link service in the other LAN. The Vortex Link services will then be able to establish a route between applications in distinct LAN.
In this use case we can deploy the services on the NAT host (i.e. a host with two network interfaces: one connected to the LAN with a private IP, and one connected to the WAN with a public IP).
We will configure the Vortex Link service in each LAN to:
- use the network interface connected to the LAN to discover UDP user applications and route traffic from user applications
- use the network interface connected to the WAN to route traffic to the remote Vortex Link service through TCP
- establish a TCP connection with the remote Vortex Link service in the other LAN
Vortex Link service 1:
link.udp.interface=eth0
link.tcp.interface=eth1
link.tcp.peers=80.80.80.80:7400
Vortex Link service 2:
link.udp.interface=eth0
link.tcp.interface=eth1
link.tcp.peers=65.65.65.65:7400
App 1, 2, 3, 4:
(nothing to configure)
11.4. LAN to LAN (I can’t deploy on my Firewall/NAT but can configure it)¶
This use case is similar to the previous one (see LAN to LAN (I can deploy on my Firewall/NAT)) except that here we cannot deploy the Vortex Link services on the NAT hosts. Instead, we can configure each NAT to redirect the TCP port (default 7400) to a host in each LAN.
The only differences from the configurations of the previous use case are that the services are now using only one network interface, and that we need to specify the NAT public IP for each service using the externalNetworkAddresses property.
Vortex Link service 1:
link.network.interface=eth0
link.tcp.peers=80.80.80.80:7400
link.externalNetworkAddresses=65.65.65.65
Vortex Link service 2:
link.network.interface=eth0
link.tcp.peers=65.65.65.65:7400
link.externalNetworkAddresses=80.80.80.80
App 1, 2:
(nothing to configure)

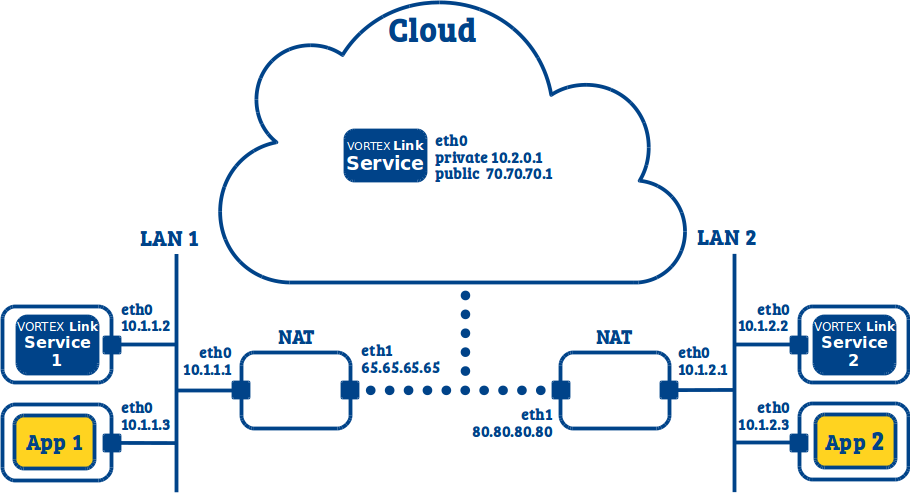

11.5. Indirect LAN to LAN (I can’t deploy on my Firewall/NAT and can’t configure it)¶
This use case is similar to the previous ones (see LAN to LAN (I can deploy on my Firewall/NAT) and see LAN to LAN (I can’t deploy on my Firewall/NAT but can configure it)), but here we can not deploy the Vortex Link services on the NAT hosts, and we can not configure ports redirection on the NAT. The consequence is that services deployed in each LAN cannot establish a direct connection with services in the remote LAN.
We therefore need to use a cloud as an intermediate, and to deploy a Vortex Link service within the cloud. This service will be in charge of routing communications between the Vortex Link services.
Note that this deployement is actually a hierarchical deployment, and thus Vortex Link must be configured with a higher service level than the Vortex Link services (which by default are configured with level 0). See link.serviceLevel configuration.
Vortex Link service:
link.network.interface=eth0
link.externalNetworkAddresses=70.70.70.1
link.serviceLevel=1
Vortex Link services 1 & 2:
link.network.interface=eth0
link.tcp.peers=70.70.70.1:7400
link.externalNetworkAddresses=none
App 1, 2:
(nothing to configure)

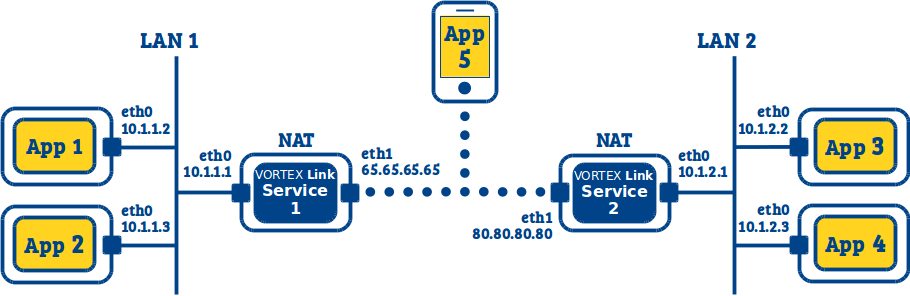

11.6. LAN to LAN + Internet devices (no cloud)¶
This use case is similar to the one in LAN to LAN (I can deploy on my Firewall/NAT), but we also want to have external devices using DDS over TCP to communicate with DDS applications in each LAN.
The TCP applications must be configured to connect to one (or both) of the Vortex Link services.
Link 1:
link.udp.interface=eth0
link.tcp.interface=eth1
link.tcp.peers=80.80.80.80:7400
Link 2:
link.udp.interface=eth0
link.tcp.interface=eth1
link.tcp.peers=65.65.65.65:7400
App 1, 2, 3, 4:
(nothing to configure)
App 5 (using Vortex Café):
ddsi.network.udp.enabled=false
ddsi.discovery.tcp.peers=65.65.65.65:7400
ddsi.discovery.tcp.port=7400
ddsi.discovery.externalNetworkAddresses=none

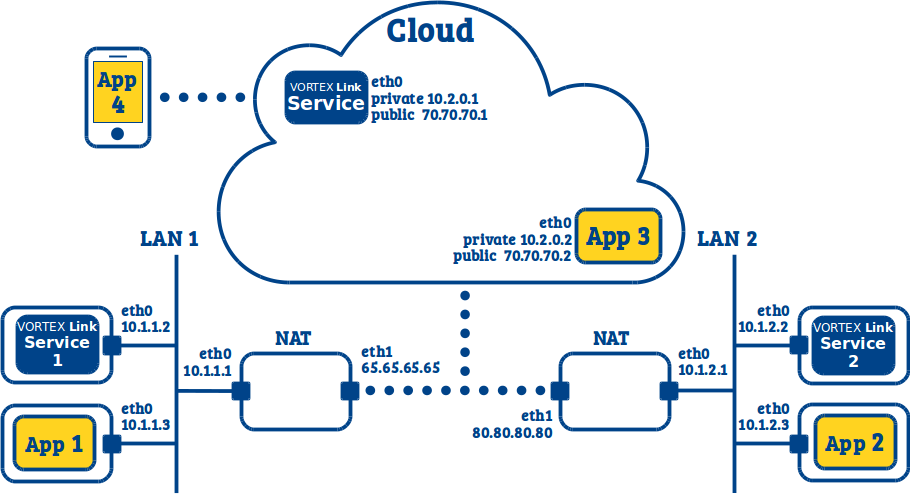

11.7. LAN to LAN + Internet devices (with public cloud)¶
This use case is similar to the previous one (see LAN to LAN + Internet devices (no cloud)), but in addition we want applications deployed in a public cloud (without UDP multicast) to communicate with applications in the LAN and applications on devices using TCP.
To support this, we need to deploy a Vortex Link service in the cloud. Note that as the Vortex Link service is deployed in a cloud with a public IP, the TCP applications on devices can connect to it directly. Note also that as the Vortex Link service can mediate communications between the Vortex Link services in the sub systems, the Vortex Link services can be deployed on any host and do not need to be publicly accessible.
Vortex Link service:
link.network.interface=eth0
link.externalNetworkAddresses=70.70.70.1
link.serviceLevel=20
Vortex Link services 1 & 2:
link.network.interface=eth0
link.tcp.peers=70.70.70.1:7400
link.externalNetworkAddresses=none
App 1 & 2:
(nothing to configure)
App 3:
(nothing to configure)
App 4 (using Vortex Café):
ddsi.network.udp.enabled=false
ddsi.discovery.tcp.peers=70.70.70.1:7400
ddsi.discovery.tcp.port=7400
ddsi.discovery.externalNetworkAddresses=none
