3. Installation

This section describes the procedure to install the Python DCPS API on a Linux or Windows platform.

3.1. System Requirements

Operating System: Linux or Windows

3.2. Dependencies

Linux

  • Python3 version 3.4.0 or later

  • pip3 (package “python3-pip” on most linux package managers)

  • GCC 4.8 or later

Windows

  • Python version 3.5.0 or 3.6.0

  • pip (usually already included in Python for Windows)

  • Visual Studio 14 (2015) C compiler or later

Python modules

  • Cython version 0.27 or later (install using “pip3 install Cython”)

Development machines use the HDE (Host Devevelopment Environment) installation and license key. Deployment machines use the RTS (RunTime System) installation and license key.

3.3. OpenSplice (OSPL) and Python DCPS API Installation

Steps:

  1. Install OSPL. The Python DCPS API is included in this installer.

  2. Setup OSPL license. Copy the license.lic file into the appropriate license directory.

/INSTALLDIR/ZettaScale/OpenSplice/7.x.x/HDE/x86_64.win64/etc

  1. Python DCPS API files are contained in a tools/python folder

Example: $OSPL_HOME/tools/python

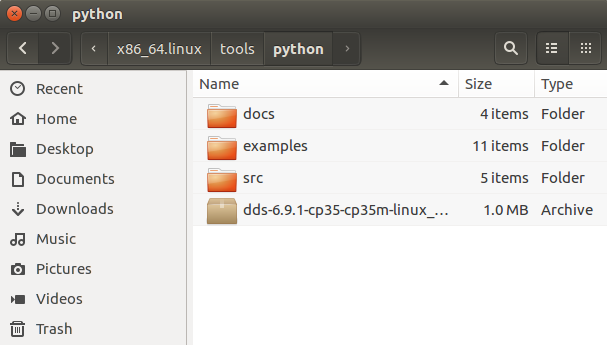

Python Directory

3.4. Python DCPS API Setup

3.4.1. Install Python DCPS API package from python wheel

In certain OpenSplice installs, the python api is bundled as a python wheel file in the $OSPL_HOME/tools/python directory. This way it avoids needing a native compiler and Cython prerequisites before installation.

Simply install using pip. For example, executing the command will install the wheel package, which is targeted for python 3.4 64-bit Linux:

$pip3 install dds-6.9.0-cp34-cp34m-linux_x86_64.whl

Or similarly, for python 3.5 64-bit Windows:

>pip install dds-6.9.0-cp35-cp35m-win_amd64.whl

If the binary wheel package is not present or is not compatible with your python version, then it is preferable to install the api from source.

3.4.2. Install Python DCPS API package from source

If the dependencies are satisfied, and the OpenSplice environment is set (OSPL_HOME and associated environment variables), then installation is just one command to execute in the $OSPL_HOME/python/src directory:

$python3 setup.py install

Note

  • This option requires the idlpp application and so will not work with a RTS installation.

  • In either case, installing from wheel or from source may require administrator or superuser privileges if python was installed for all users.

  • To check modules are installed correctly try importing the installed modules.

    >>> import dds
>>> import ddsutil

3.5. Examples and Documentation

  1. Examples

    The examples can be found in the following directory:

    • $OSPL_HOME/tools/python/examples

  2. Python DCPS API Documentation

    The Python DCPS API can be found in the following directory:

    • $OSPL_HOME/tools/python/docs/html

  3. Python DCPS User Guide (HTML and PDF)

    The user guide can be found in the following directories:

    • $OSPL_HOME/docs/html

    • $OSPL_HOME/docs/pdf
