12. DDS Security¶

Vortex OpenSplice is compliant with The Object Management Group (OMG) DDS Security specification.

This specification defines the Security Model and Service Plugin Interface (SPI) architecture for compliant DDS implementations. The DDS Security Model is enforced by the invocation of these SPIs by the DDS implementation.

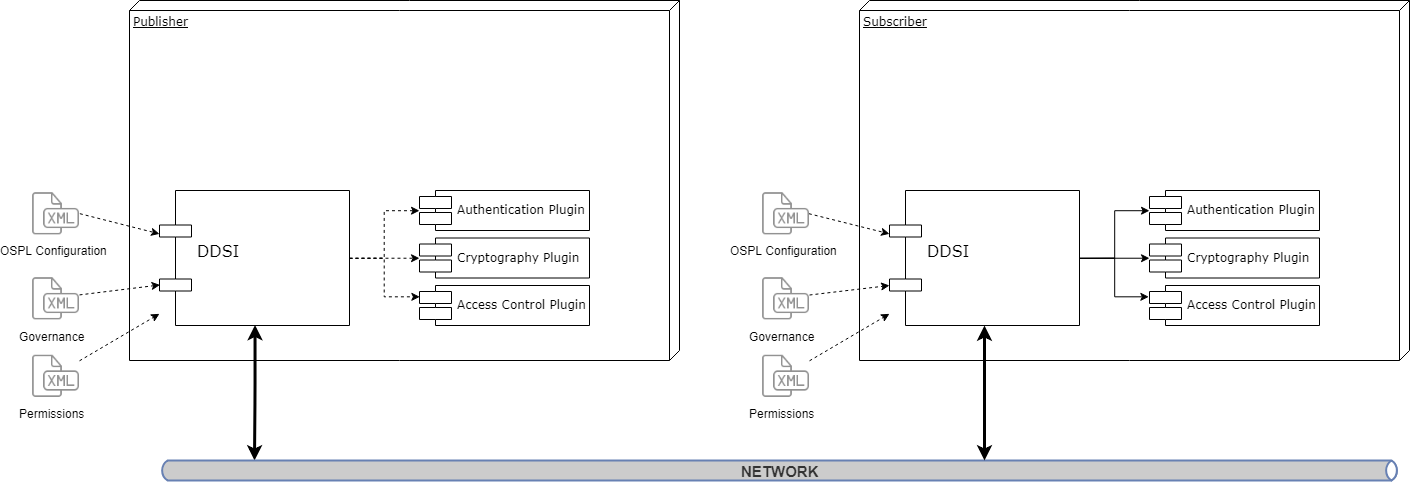

The three plugins that comprise the DDS Security Model in Vortex OpenSplice are

Authentication Service Plugin

Provides the means to verify the identity of the application and/or user that invokes operations on DDS. Includes facilities to perform mutual authentication between participants and establish a shared secret.

AccessControl Service Plugin

Provides the means to enforce policy decisions on what DDS related operations an authenticated user can perform. For example, which domains it can join, which Topics it can publish or subscribe to, etc.

Cryptographic Service Plugin

Implements (or interfaces with libraries that implement) all cryptographic operations including encryption, decryption, hashing, digital signatures, etc. This includes the means to derive keys from a shared secret.

Vortex OpenSplice provides built-in implementations of these plugins. Authentication uses PKI (Public Key Infrastructure) with a pre-configured shared Certificate Authority, RSA is used for authentication and Diffie-Hellman is used for key exchange. AccessControl use Permissions document signed by shared Certificate Authority. Cryptography uses AES-GCM (AES using Galois Counter Mode) for encryption and AES-GMAC for message authentication.

The plugins are accessed by the DDSI2 or DDSI2E services when DDS Security is enabled by supplying the security configuration.

Security plugins are dynamically loaded where the locations are defined in Vortex OpenSplice configuration.

12.1. Brief information about PKI (public key infrastructure)¶

The comprehensive system required to provide public-key encryption and digital signature services is known as a public-key infrastructure (PKI). The purpose of a PKI is to manage keys and certificates. By managing keys and certificates through a PKI, an organization establishes and maintains a trustworthy networking environment.

Public Key Cryptography: Each user has a key pair, generated during the initial certificate deployment process, that is comprised of a public key, which is shared, and a private key, which is not shared. Data is encrypted with the user’s public key and decrypted with their private key. Digital signatures, used for non-repudiation, authentication and data integrity, are also generated using public key cryptography.

Identity Certificate is an electronic document used to prove the ownership of a public key. The certificate includes information about the key, information about the identity of its owner (called the subject), and the digital signature of an entity that has verified the certificate’s contents (called the issuer). If the signature is valid, and the software examining the certificate trusts the issuer, then it can use that key to communicate securely with the certificate’s subject.

Certificate Authority issues user certificates and acts as the chief agent of trust. When issuing a certificate to a user, the CA signs the certificate with its private key in order to validate it. During electronic transactions the CA also confirms that certificates are still valid. Certificates may be revoked for various reasons. For example, a user may leave the organization or they may forget their secret passphrase, the certificate may expire or become corrupt. This process is usually accomplished through the use of a Certificate Revocation List (CRL) which is a list of the certificates that have been revoked. Only the certificates that have been revoked appear on this list.

Subject of Identity Certificate is the identity to be secured. It contains information such as common name (CN), organization (OU), state (ST) and country (C).

Subject Name (aka distinguished name) is the string representation of certificate subject.

ie: emailAddress=alice@adlink.ist,CN=Alice,OU=IST,O=ADLink,ST=OV,C=NL

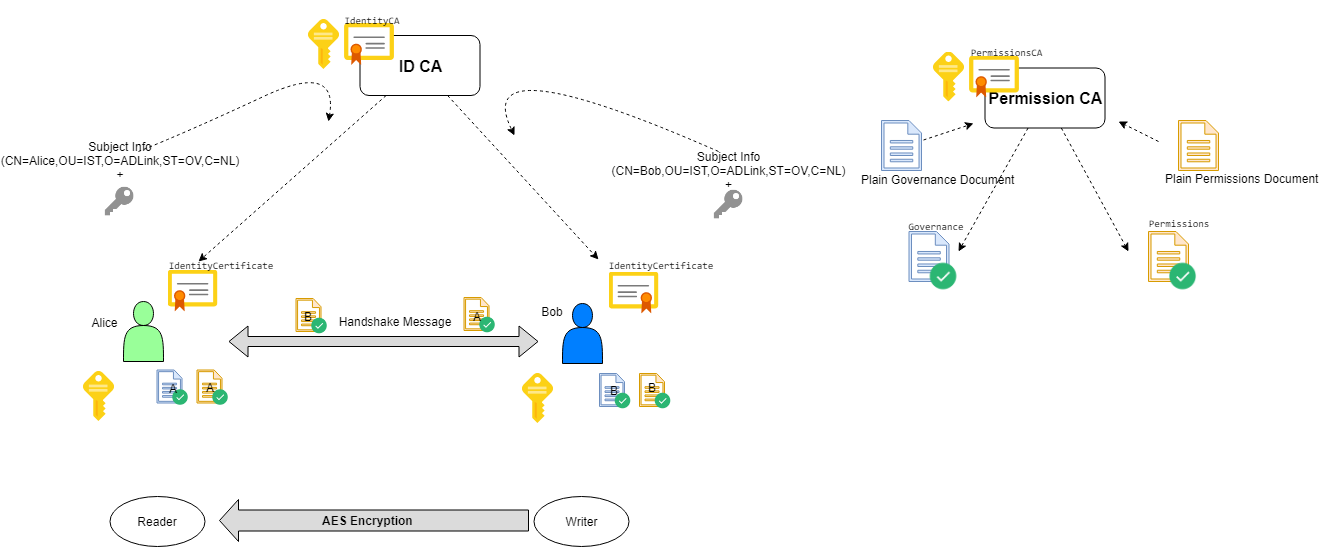

12.2. PKI Usage in DDS Security¶

Alice and Bob are the DDS participants who have their private and public keys. Identitity Certificate Authority (ID CA) has its own self-signed certificate (IdentityCA in the diagram). ID CA gets Alice’s subject information and public key and generates an IdentityCertificate for her. Alice’s certificate includes her public key and certificate of ID CA; so that her certificate can be verified if it is really issued by ID CA.

Access Control is configured with governance and permissions files. Governance file defines the security behavior of domains and topics. Permissions file contains the permissions of the domain participant, topics, readers and writers, binds them to identity certificate by subject name (distinguished name).

Governance files and Permissions files are signed by Permission CA. Signed documents also contains Permissions CA certificate; so that they can be verified if they are really issued by Permissions CA.

Authenticated participants handshakes with each other and generates a shared key by Diffie-Hellman key exchange. This shared key is used for encrypting/decrypting data with AES..

During the handshake Alice checks Bob’s certificate and Bob’s Permissions file if they are really issued by the ID CA certificate and Permissions CA Certificate that she has. Also Bob checks Alice’s certificate and Alice’s Permissions file if they are really issued by the ID CA certificate and Permissions CA that he has. Permissions file can contain permissions for several identites; so subject name of identity certificate exist in permissions file to establish a binding between identity and its permissions.

12.3. Configuration¶

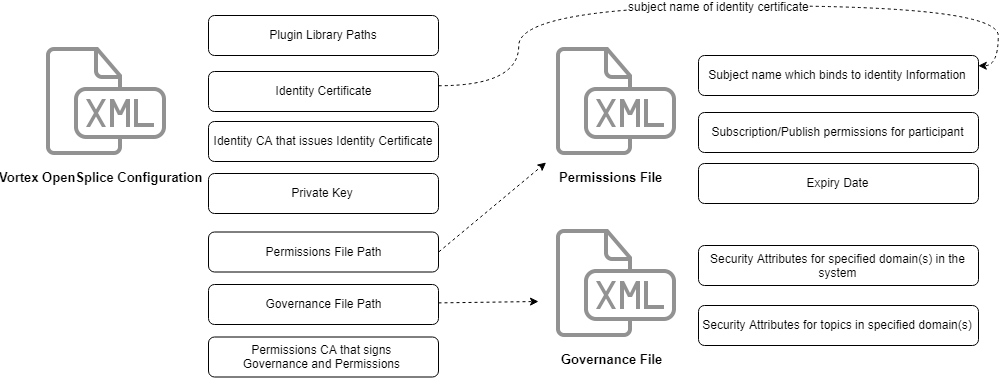

_images/dds_security_configuration_overview.png

The configuration of DDS Security is split up into two parts.

Plugins Configuration
Access Control Configuration

This section explains the configuration in details. However, you can see a concrete example on security section of Example Readme file.

12.3.1. Plugins Configuration¶

Vortex OpenSplice gets the plugin configuration from DDS2I and DDS2IE configuration elements instead of Participant QoS Policies as stated in the DDS Security specification.

This behavior allows applications to use DDS Security without update. Only supplying a new configuration with DDS Security enabled is enough to switch from a non-secure to a secure deployment. However, the same DDS Security configuration is forced upon all the participants within the federation.

The configuration options are bundled in the DDSSecurity configuration section in DDS2I and DDS2IE.

Every DDS Security plugin has its own configuration sub-section.

12.3.1.1. Authentication Properties¶

To authenticate an OpenSplice federation, it has to be configured with IdentityCertificate (DDSSecurity/Authentication/IdentityCertificate - see DDS Security section). This IdentityCertificate is used to authenticate all participants of that particular OpenSplice federation.

Associated with the IdentityCertificate is the corresponding PrivateKey (DDSSecurity/Authentication/PrivateKey). The PrivateKey may either be a 2048-bit RSA or a 256-bit Elliptic Curve Key with a prime256v1 curve.

IdentityCA (DDSSecurity/Authentication/IdentityCA) is the certificate of Identity Certificate Authority (CA) which is the issuer of the IdentityCertificate. The public key of the IdentityCA shall either be a 2048-bit RSA key or a 256-bit Elliptic Curve Key for the prime256v1 curve. The identity_ca can be a self-signed certificate.

Currently the IdentityCertificate, IdentityCA and PrivateKey should be a X509 document in pem format. It may either be specified directly in the configuation file or the configuration file should contain a reference to a corresponding file.

Optionally the PrivateKey could be protected by a password (DDSSecurity/Authentication/Password).

Furthermore the OpenSplice configuration allows to configure a directory containing additional IdentityCA’s which are used to verify the identity certificates that are received by remote instances (DDSSecurity/Authentication/TrustedCADirectory). This option allows to use more than one identity CA throughout the system. TrustedCADirectory is an extension to DDS Security specification; so it can not be used when communicating with other vendors.

12.3.1.2. Access Control Properties¶

Governance Document (DDSSecurity/AccessControl/Governance), Permissions Document (DDSSecurity/AccessControl/Permissions) and Permissions CA Certificate (DDSSecurity/AccessControl/PermissionsCA) are required for access control plugin. See DDS Security section for property descriptions. They can be provided by data itself (with CDATA) or path to file on disk.

12.3.1.3. Cryptography Properties¶

Cryptography plugin has no property

12.3.2. Access Control Configuration¶

Access Control configuation consists of Governance document and Permissions document. Both governance and permissions files must be signed by the Permissions CA in S/MIME format. Participants use their own permissions CA to validate remote permissions. So, all permissions CA Certificates must be same for all participants.

The signed document should use S/MIME version 3.2 format as defined in IETF RFC 5761 using SignedData Content Type (section 2.4.2 of IETF RFC 5761) formatted as multipart/signed (section 3.4.3 of IETF RFC 5761). This corresponds to the mime-type application/pkcs7-signature. Additionally the signer certificate should be be included within the signature.

12.3.2.1. Governance Document¶

Governance document defines the security behavior of domains and topics. It is an XML document and its format is specified in OMG DDS Security Version 1.1 Section 9.4.1.2.3

The attributes that specified in Governance document must match with the remote one for establishing communication.

12.3.2.1.1. Protection Kinds¶

The domain governance document provides a means for the application to configure the kinds of cryptographic transformation applied to the complete RTPS Message, certain RTPS SubMessages, and the SerializedPayload RTPS submessage element that appears within the Data.

The configuration allows specification of five protection levels: NONE, SIGN, ENCRYPT, SIGN_WITH_ORIGIN_AUTHENTICATION and ENCRYPT_WITH_ORIGIN_AUTHENTICATION.

NONE: indicates no cryptographic transformation is applied.
SIGN: indicates the cryptographic transformation shall be purely a message authentication code (MAC), that is, no encryption is performed.
ENCRYPT: indicates the cryptographic transformation shall be an encryption followed by a message authentication code (MAC) computed on the ciphertext, also known as Encrypt-then-MAC.
SIGN_WITH_ORIGIN_AUTHENTICATION: indicates the cryptographic transformation shall be purely a set of message authentication codes (MAC), that is, no encryption is performed. This cryptographic transformation shall create a first “common authenticationcode” similar to the case where Protection Kind is SIGN. In addition the cryptographic transformation shall create additional authentication codes, each produced with a different secret key. The additional MACs prove to the receiver that the sender originated the message, preventing other receivers from impersonating the sender.
ENCRYPT_WITH_ORIGIN_AUTHENTICATION: indicates the cryptographic transformation shall be an encryption followed by a message authentication code (MAC) computed on the ciphertext, followed by additional authentication codes, Each of the additional authentication codes shall use a different secret key. The encryption and first (common) authentication code is similar to ones produced when the Protection Kind is ENCRYPT. The additional authentication codes are similar to the ones produced when the Protection Kind is SIGN_WITH_ORIGIN_AUTHENTICATION.

12.3.2.1.2. Participant attributes¶

Allow Unauthenticated Participants: This is used for allowing communication with non-secure participants. If this option is enabled, secure participant can communicate with non-secure participant by only non-protected topics.
Enable Join Access Control: If this option is enabled, remote participant permissions are checked if its subject name is allowed to create a topic anyhow.
Discovery Protection Kind: Protection attribute for discovery communication when it is enabled for topic. Please see the DDS Security specification document for available options.
Liveliness Protection Kind: Protection attribute for liveliness communication when it is enabled for topic. Please see the DDS Security specification document for available options.

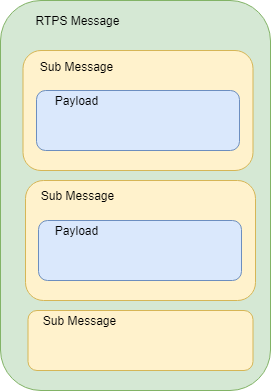

RTPS Protection Kind: Protection attribute for all messages on the wire. Please see the DDS Security specification document for available options. If encryption is selected for RTPS, there is no need to encrypt submessages (metadata_protection_kind) and payloads (data_protection_kind) which are defined in topic settings.

12.3.2.1.3. Topic Attributes¶

Enable Discovery protection:: If enabled, discovery is protected according to Discovery Protection Kind attribute of corresponding participant.
Enable Liveliness protection:: If enabled, liveliness is protected according to Liveliness Protection Kind attribute of corresponding participant.
Enable Read Access Control:: If enabled, the permissions document is checked if the participant is allowed to create a datareader for the related topic.
Enable Write Access Control:: If enabled, the permissions document is checked if the participant is allowed to create a datawriter for the related topic.
Metadata protection Kind:: Protection attribute for submessages.
Data protection Kind:: Protection attribute for data payload.

There are different settings for different domain ranges. The domain rules are evaluated in the same order as they appear in the document. A rule only applies to a particular DomainParticipant if the domain Section matches the DDS domain_id to which the DomainParticipant belongs. If multiple rules match, the first rule that matches is the only one that applies.

The topic access rules are evaluated in the same order as they appear within the <topic_access_rules> Section. If multiple rules match the first rule that matches is the only one that applies.

fnmatch pattern matching can be used for topic expressions including the following patterns

Pattern	Meaning
*	matches everything
?	matches any single character
[seq]	matches any character in seq
[!seq]	matches any character not in seq

12.3.2.2. Permissions Document¶

The permissions document is an XML document containing the permissions of the domain participant and binding them to the subject name of the DomainParticipant as defined in the identity certificate. Its format is specified in OMG DDS Security Version 1.1 Section 9.4.1.3

12.3.2.2.1. Validity period¶

It is checked before creating participant; expired permissions document results with DDSI shutdown. Validity period is also checked during handshake with remote participant; expired remote permissions document prevents communications to be established.

12.3.2.2.2. Subject Name¶

The subject name must match with Identity Certificate subject. It is checked during create participant and during handshake with remote participant. Use the following openssl command to get subject name from identity certificate:

openssl x509 -noout -subject -nameopt RFC2253 -in <identity_certificate_file.crt>

12.3.2.2.3. Rules¶

DomainParticipant permissions are defined by set of rules.

The rules are applied in the same order that appear in the document. If the criteria for the rule matches the domain_id join and/or publish or subscribe operation that is being attempted, then the allow or deny decision is applied. If the criteria for a rule does not match the operation being attempted, the evaluation shall proceed to the next rule. If all rules have been examined without a match, then the decision specified by the “default” rule is applied. The default rule, if present, must appear after all allow and deny rules. If the default rule is not present, the implied default decision is DENY. The matching criteria for each rule specify the domain_id, topics (published and subscribed), the partitions (published and subscribed), and the data-tags associated with the DataWriter and DataReader.

For the grant to match there shall be a match of the topics, partitions, and data-tags criteria. This is interpreted as an AND of each of the criteria. For a specific criterion to match (e.g., <topics>) it is enough that one of the topic expressions listed matches (i.e., an OR of the expressions with the <topics> section).

fnmatch pattern matching can be used for topic expressions and partition expressions.

12.3.3. Interactions with DDS Security¶

DDS Security provides the responses through OpenSplice error anf info log. Users can get messages for:

Configuration errors such as plugin library files, certificate files, governance and permissions files that can not be found on filesystem
Permission errors such as denied permission for creating writer of a topic.
Attribute mismatch errors such as mismatches of security attributes between participants, topics, readers and writers
Integrity errors such as Permissions file-Permissions CA and Identity Cert-Identity CA integrity.

Local Subscription, publication and topic permission are written to error log. Remote participation, subscription and publication permission errors are written to info log as warning message. Local participant authentication/permission errors and configuration errors cause DDSI failure. Configuration files (certificates or access control files) have to be updated to fix those errors. It is better to configure DDSI service FailureAction as “systemhalt”, so that you can notice the error quickly when the federation stops working.

<Service name="ddsi2e">
    <Command>ddsi2e</Command>
    ...
    <FailureAction>systemhalt</FailureAction>
    ...
</Service>

12.3.4. Data Communication And Handshake Process¶

Authentication handshake between participants starts after participant discovery. If a reader and a writer created during that period, their match will be delayed until after the handshake succeeds. This means, during the handshake process, volatile data will be lost, just like there is no reader.

After publication match, the encryption / decryption keys are exchanged between reader and writer. Best-effort data that are sent during this exchange will be lost, however reliable data will be resent.

12.3.5. DDS Secure Discovery¶

Just like normal operation, DDSI will discover local and remote participants, topics, readers and writers. However, when DDS Security is enabled, it is more complex and will take a longer time (especially due to the handshaking that has to happen).

With every new node in the system, the discovery takes exponentially longer. This can become a problem if the system contains a number of slow platforms or is large.

The Security discovery performance can be increased quite a bit by using the DDSI Internal/SquashParticipants configuration. See the SquashParticipants chapter in the DeploymentGuide for more information.

12.3.6. Proprietary builtin endpoints¶

The DDS standard contains some builtin endpoints. A few are added by the DDS Security specification. The
behaviour of all these builtin endpoints are specified (and thus are be handled by the plugins that implement
the DDS Security specification), meaning that they don’t have to be present in the Governance or Permissions
documents and the users don’t have to be bothered with them.

A few of these builtin endpoints slave according to the <discovery_protection_kind> within the Governance
document. In short, related submessages are protected according to the value of <discovery_protection_kind>.
This protects meta information that is send during the discovery phase.

OpenSplice generates a few proprietary builtin endpoints of its own. These endpoints also contain meta
information that is communicated during the discovery phase. To keep everything consistent, these endpoints
also slave the <discovery_protection_kind> element, just like those few DDS Security endpoints.
This is handled by OpenSplice itself, not the plugins.

12.4. Durability Service¶

There are a few considerations that need to be taken into account when using the Vortex OpenSplice Durability
Service together with DDS Security.
In short, DDS Security can become un-secure when using the Durability Service.

The Durability Services communicate with their own topics. Part of this communication through Durability topics
is the data from transient/persistent writers.

DDS Security has no knowledge of the Durability Service. This means that if the Durability Service topics
are not secure, data of transient secure topics can be send un-secure over the wire by Durability through its
own (un-secure) topics.

Another issue is when ‘allowing unauthorized participants’, late joining readers that are not authorized, can
get data from secure writers through the Durability Service topics.

This can be prevented by making sure that the Durability Service topics have the same security settings as the
most secure topic within the permissions document. This can be done by making permission rules for ‘*’ topics,
which also includes all Durability topics. However, all Durability topic names start with “d_”. This can be used
to create a separate rule for Durability topics, which can leave the ‘wildcard’ rule with different settings.

12.5. Vortex Link¶

Please be aware that if your setup has to be extended with Vortex Link, then there are a few restrictions that
need to be considered when configuring your DDS Security enabled setup.

For more information about these restriction, examine the DDS Security chapter in the Vortex Link documentation.

12.6. DataTag Permissions¶

Data Tags provide an extra (optional) level of identification. This can mean f.i. that a certain reader is not
allowed to read data from writer A but it is allowed to read from writer B (all the same topic).

This optional feature is not yet supported.

12.7. External Plugin Development¶

DDS Security consists of three plugins (authentication, cryptography and access control). Vortex OpenSplice comes with built-in security plugins that comply with OMG DDS Security specification. The plugins are loaded in the run-time. However, you can also implement your own custom plugin by implementing the given API according to OMG DDS Security specification. You can implement all of the plugins or just one of them.

The followings are the key points for implementing you own plugin:

12.7.1. Interface¶

Implement all plugin specific functions with exactly same prototype. Plugin specific function interfaces are in dds_security_api_access_control.h, dds_security_api_authentication.h and dds_security_api_cryptography.h header files accordingly.

12.7.2. Init and Finalize¶

A plugin should have an init and a finalize functions. plugin_init and plugin_finalize interfaces are given in dds_security_api.h header file and function should be same as in configuration file.

Init function is called once, just after the plugin is loaded. Finalize function is called once, just before the plugin is unloaded.

12.7.3. Inter Plugin Communication¶

There is a shared object (DDS_Security_SharedSecretHandle) within authentication and cryptography plugins. If you want to implement only one of them and use the builtin for the other one, you have to get or provide the shared object properly.

DDS_Security_SharedSecretHandle is the integer representation of DDS_Security_SharedSecretHandleImpl struct object. Cryptography plugin gets the DDS_Security_SharedSecretHandle from authentication plugin and casts to DDS_Security_SharedSecretHandleImpl struct. Then all needed information can be retieved through DDS_Security_SharedSecretHandleImpl struct:

typedef struct DDS_Security_SharedSecretHandleImpl {
 DDS_Security_octet* shared_secret;
 DDS_Security_long shared_secret_size;
 DDS_Security_octet challenge1[DDS_SECURITY_AUTHENTICATION_CHALLENGE_SIZE];
 DDS_Security_octet challenge2[DDS_SECURITY_AUTHENTICATION_CHALLENGE_SIZE];

} DDS_Security_SharedSecretHandleImpl;

12.7.4. Error Codes¶

Most of the plugin functions have parameter for reporting exception. The following exception codes should be used in the reported exception data according to the situation. dds_security_api_err.h header file contains the code and message constants.

Code	Message
0	(OK)
100	Can not generate random data
110	Identity empty
111	Participant Crypto Handle empty
112	Permission Handle empty
113	Invalid Crypto Handle
114	Invalid argument
115	Invalid Crypto token
116	Invalid parameter
117	File could not be found, opened or is empty, path: %s
118	Unknown or unexpected transformation kind
119	Message cannot be authenticated, incorrect signature
120	Can not open trusted CA directory
121	Identity CA is not trusted
122	Certificate start date is in the future
123	Certificate expired
125	Certificate authentication algorithm unknown
126	Failed to allocate internal structure
127	Failed to parse PKCS7 SMIME document
128	Property is missing: (%s)
129	Permissions document is invalid
130	Governance document is invalid
131	Operation is not permitted in this state
132	Remote permissions document is not available
133	Certificate is invalid
134	Certificate type is not supported
135	Governance property is required
136	Permissions CA property is required
137	Can not parse governance file
138	Can not parse permissions file
139	Could not find permissions for topic
140	Could not find domain %d in permissions
141	Could not find domain %d in governance
142	Could not find %s topic attributes for domain(%d) in governance
143	PluginClass in remote token is incompatible
144	MajorVersion in remote token is incompatible
145	Access denied by access control
146	Subject name is invalid
147	Permissions validity period expired for %s
148	Permissions validity period has not started yet for %s
149	Could not find valid grant in permissions
150	Permissions of subject (%s) outside validity date: %s - %s
151	Unsupported URI type: %s
