2. Installation

This section describes the procedure to install the Vortex DDS MATLAB Integration on a Linux or Windows platform.

2.1. System Requirements

  • Operating System: Windows or Linux

  • MATLAB installed

  • Java 1.7 or greater

2.2. OpenSplice (OSPL) and DDS MATLAB Installation

Steps:

  1. Install OSPL. The DDS MATLAB Integration is included in this installer.

  2. Setup OSPL license. Copy the license.lic file into the appropriate license directory.

/INSTALLDIR/Vortex_v2/license

  1. DDS MATLAB files are contained in a tools/matlab folder

Example: /INSTALLDIR/Vortex_v2/Device/VortexOpenSplice/6.8.1/HDE/x86_64.linux/tools/matlab

2.3. MATLAB and DDS Setup

Steps:

  1. Open command shell and run script to setup environment variables.

    Linux

    • Open a Linux terminal.

    • Navigate to directory containing release.com file.

      /INSTALLDIR/Vortex_v2/Device/VortexOpenSplice/6.8.1/HDE/x86_64.linux

    • Run release.com. (Type in “. release.com” at command line.)

    Windows

    • Open a command prompt.

    • Navigate to directory containing release.bat file.

      INSTALLDIR/Vortex_v2/Device/VortexOpenSplice/6.8.1/HDE/x86_64.win64

    • Run release.bat. (Type in “release.bat” at command line.)

  2. Start MATLAB using the SAME command shell used in Step 1.

    NOTE: If MATLAB is NOT started from a command shell with the correct OSPL environment variables set, exceptions will occur when attempting to use DDS MATLAB classes.

  3. In MATLAB, navigate to file “Vortex_DDS_MATLAB_API.mltbx” by typing:

    cd(fullfile(getenv('OSPL_HOME'),'tools','matlab'))

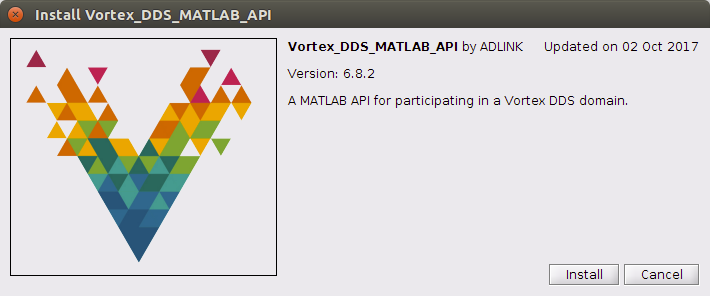

  4. Double click on the file “Vortex_DDS_MATLAB_API.mltbx”. This will bring up a dialog entitled Vortex_DDS_MATLAB_API. Select Install.

DDS

2.4. Examples

Example models have been provided in the examples folder.

Example: /INSTALLDIR/Vortex_v2/Device/VortexOpenSplice/6.8.1/HDE/x86_64.linux/tools/matlab/examples/matlab
