6. Demo iShapes Example

A simple demo iShapes example is provided to demonstrates the basic capabilities of the LabVIEW DDS integration. It displays DDS communication between LabVIEW and pure DDS applications.

The demo_ishapes.vi example (LabVIEW application) can be found using the NI Example Finder in LabVIEW:

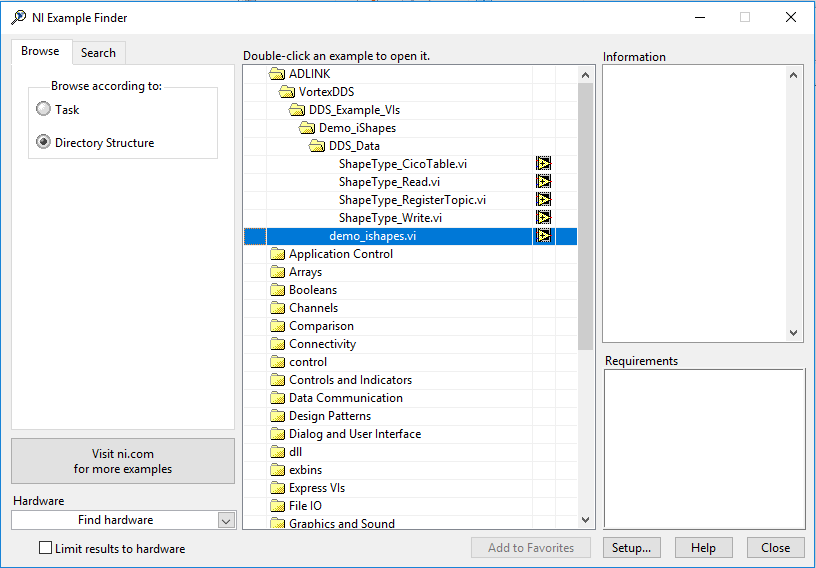

NI Example Finder

The demo_ishapes.exe (DDS application) can be found in the following directory.

OSPL_HOME/bin/demo_ishapes.exe

6.1. Example Files

An explanation of what each example file does is provided below.

Demo ishapes files

DDS_Data Folder

This folder contains the idl file and artifacts generated from idlpp process.

ishape.idl

  • Defines the ShapeType in idl

  • Used to generate the LabVIEW DDS VIs via idlpp

ishape.idl.xml

  • Defines the topic descriptor from idl file

ShapeType_CicoTable.vi

  • Defines the copy-in, copy-out table information for mapping IDL to LabVIEW types

ShapeType.ctl

  • Defines a ShapeType cluster in LabVIEW; generated from idlpp

  • The ShapeType represents a DDS topic type

  • ShapeType specifies 4 properties: color, x, y, shapesize

ShapeType_Read.vi

  • DDS Read ShapeType samples

ShapeType_Write.vi

  • DDS Write ShapeType samples

ShapeType_Topic.vi

  • DDS Register ShapeType topic

DDS_PersistentQoS_All.xml

  • XML file that specifies the DDS QoS (quality of service) settings for RegisterTopic

DDS_VolatileQoS_All.xml

  • XML file that specifies the DDS QoS (quality of service) settings for Reader and Writer entities

demo_ishapes.vi

  • Creates a participant on the default DDS domain

  • Registers a ShapeType Topic to Read and to Write to one of the three topics: Circle, Square or Triangle

  • Subscribes to the shape and color from demo_ishapes.exe DDS application

  • As soon as they match, demo_ishapes.vi publishes to the DDS application and follows the subscribed shape

6.2. Steps to run example

Steps:

  1. Open command shell and run script to setup environment variables.

    Linux

    • Open a Linux terminal.

    • Navigate to directory containing release.com file.

      /INSTALLDIR/ADLINK/Vortex_v2/Device/VortexOpenSplice/6.9.x/HDE/x86_64.linux

    • Run release.com. (Type in “. release.com” at command line.)

    Windows

    • Open a command prompt.

    • Navigate to directory containing release.bat file.

      INSTALLDIR/ADLINK/Vortex_v2/Device/VortexOpenSplice/6.9.x/HDE/x86_64.win64

    • Run release.bat. (Type in “release.bat” at command line.)

  2. Navigate to the directory that contains demo_ishapes.exe DDS application and run the application using the command shell used in Step 1.

    Linux

    /INSTALLDIR/ADLINK/Vortex_v2/Device/VortexOpenSplice/6.9.x/HDE/x86_64.linux/bin

    • Run demo_ishapes.exe (Type in “./demo_ishapes.exe &” at command line)

    Windows

    INSTALLDIR/ADLINK/Vortex_v2/Device/VortexOpenSplice/6.9.x/HDE/x86_64.win64/bin

    • Run demo_ishapes.exe (Type in “demo_ishapes.exe &” at command line)

  3. Start LabVIEW using the SAME command shell used in Step 1. Open the demo_ishapes.vi using the NI Example Finder in LabVIEW.

    NOTE: If LabVIEW and the demo_ishapes.exe application are NOT started from a command shell with the correct OSPL environment variables set, the example will not work.

  1. In the LabVIEW demo_ishapes.vi application make the following selections:

    Read Shape: Circle Track color: GREEN

    Write Shape: Triangle Write color: MAGENTA

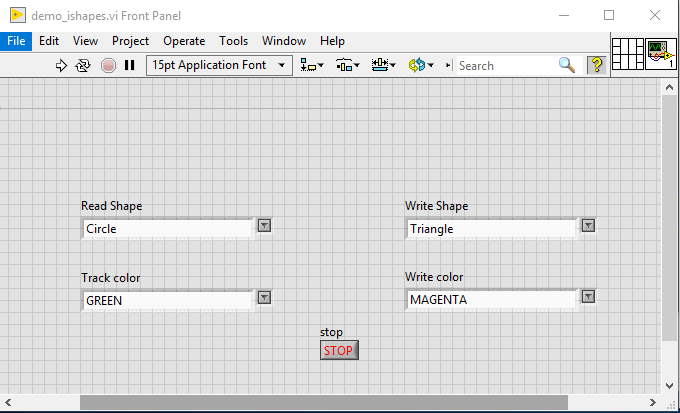

    Demo ishapes LabVIEW selection

  1. In the demo_ishapes.exe DDS application make the following selections:

    Shape: Circle Color: Green Click Publish

    Shape: Triangle Click Subscribe

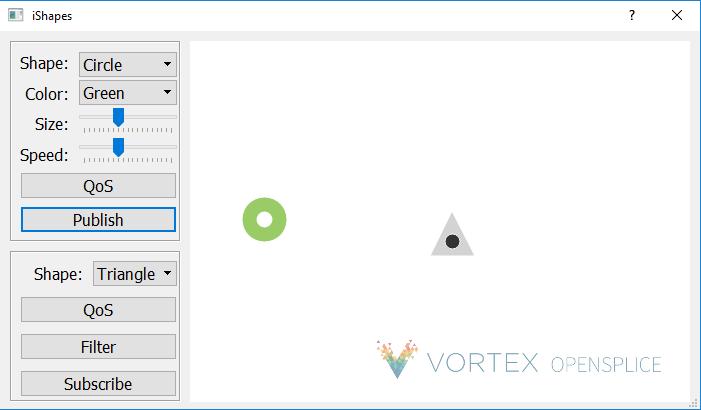

    Demo ishapes DDS application selection

  2. Run the LabVIEW demo_ishapes.vi application

  3. To stop the LabVIEW application, click on STOP on the front panel of the demo_ishapes.vi.

6.3. Output

LabVIEW application publishes samples to the DDS application. In the demo_ishapes.exe application, the Triangle follows the Circle.

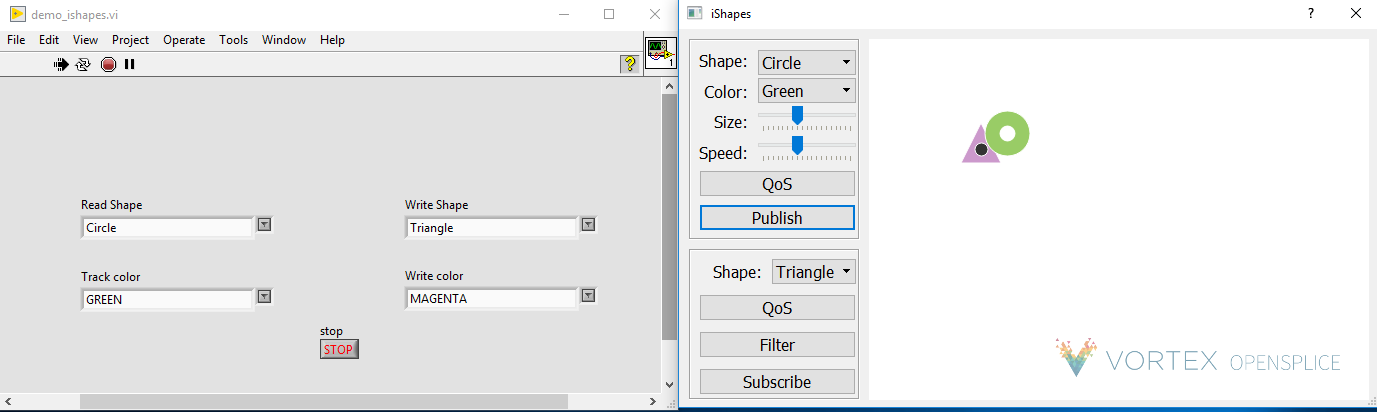

Example outputss
